Orisec ES-520 External Sounder 109dB
ES-520

'Orisec ES-520 External Sounder 109dB'

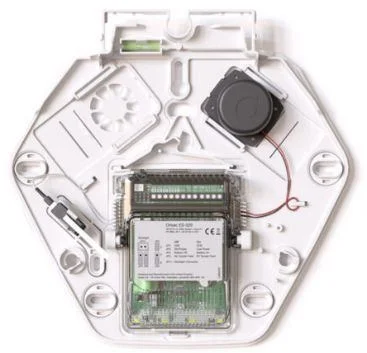

ES520 Back Plate Plus Cover Dimensions: (H)297 mm x (W)296 mm x (D)54 mm
Our Installations will have Secure I AM Logo printed Covers Unless Otherwise Requested.

Features

Optional Orisec D-Lux Backlight
Adjustable Backlight Illumination*
Adjustable Backlight Illumination**
Long Life LED Strobe
Sounder Volume 109 dB
Piezo(s) Single
Engineer Hold-Off Mode
Selectable SAB/SCB Mode
Twin Alternating LEDs
Low Current Mode
Local Self Test**
Remote Self Test **
Fault Output **
Orisec Network Compatible
Front Cover & Wall Tamper
Hinged Front Cover
Hinged Terminal Block Cover
Spirit Level
Retained Front Cover Locking Screws
Polycarbonate Construction
Sealed Electronics IP44
Warranty 2 years

* Manually Via Tamper Switch
**Orisec Panels Only when connected to the Orisec panels Network.


Please refer to Orisec External Sounder Manuals for the full specification of the Orisec ES-520 External Sounder 109dB

Request Quote Quantity

'Orisec Orisec ES-520 External Sounder 109dB' Can be coventionally wired or Network wired on Orisec panels.

Request Quote Quantity

'Orisec ES120/130 Secure I AM Logo White' Secure I AM Logo Cover White
'Orisec ES120/130<br>Secure I AM Logo Anthracite Cover Smoked Lens' Secure I AM Logo Cover Anthracite
'Orisec ES120/130 DLux Back Light' DLux Backlight ES-120/130 & Wireless ES-120*
*Requires 12V Power to function.

Request Quote Quantity

'Orisec ES520/530 Secure I AM Logo White With D-Lux Backlight' Secure I AM Logo Cover White
D-Lux Back Light

Request Quote Quantity

'Orisec ES520/530 White Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 White Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 White Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 White Cover Green Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 White Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 White Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 DLux Back Light' DLux Backlight ES-520/530 & Wireless ES-520*
*Requires 12V Power to function.

Request Quote Quantity

'Orisec ES520/530 Blue Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Blue Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Blue Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Blue Cover Green Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Blue Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Blue Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520

Request Quote Quantity

'Orisec ES520/530 Yellow Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Yellow Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Yellow Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Yellow Cover Green Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Yellow Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Yellow Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520

Request Quote Quantity

'Orisec ES520/530 Red Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Red Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Red Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Red Cover Green Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Red Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Red Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520

Request Quote Quantity

'Orisec ES520/530 Green Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Green Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Green Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Green Cover Green Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Green Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Green Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520

Request Quote Quantity

'Orisec ES520/530 Black Cover Amber Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Black Cover Blue Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Black Cover Red Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Black Cover Black Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Black Cover Tinted Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520
'Orisec ES520/530 Black Cover White Lens' Cover only for Hard Wired ES-520/530 & Wireless ES-520

Support For the
Orisec ES-520 External Sounder 109dB
ES-520

Video/Phone Support

Wiring Diagrams

Compare Orisec Panels

It is recomended that only competant people install and maintain Security systems.

Note: Other Orisec & third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
