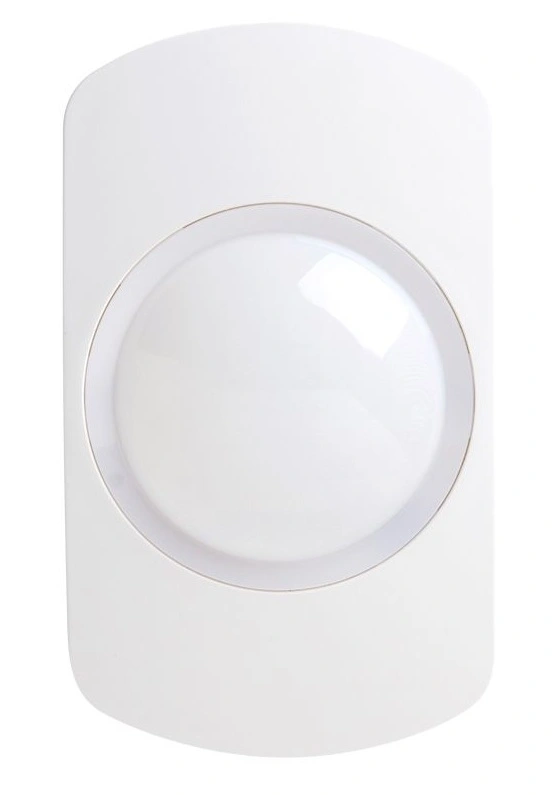

Texecom Capture C15 | ||
|---|---|---|
 | ||
| Motion Sensor Dimensions: (H)112 mm x (W)65 mm x (D)43 mm | FeaturesCurtain PIR
Please refer to Texecoms Capture Manuals for the full specification of the Texecom Capture C15 Quad Element Motion Sensor.
| |
| Buy it Now Quantity | |
Buy it Now items are available to buy via Paypal, for quantities or items without a Add to cart button please request a quote. | |
| Request Quote Quantity | |
|
|
Request Quote Quantity, if you wish to purchase items from us not via paypal, or the quantity, product or service is not available via buy it now. |
Selectable Wiring Types
| ||
|---|---|---|
Wiring Type | Slider Position | Alarm System |
| Normally Open Normally Closed | O/C O/C | Most Alarm Systems not using resistors or ID Biscuits |
1k Alarm 1k Tamper 1k/1k | Honeywell | Ademco Microtech |
4k7Alarm 2k2 Tamper | Default Value | Texecom, Orisec Scantronic Menvier Pyronix, Castle CareTech. |
4k7 Alarm 6k8 Tamper | 4k7/6k8 | Risco Gardtech |
*4k7 Alarm 4k7 Tamper | 4k7/4k7 | Aritech |
*3k3 Alarm 3k3 Tamper | 3k3/3k3 | Texecom Premier International |
5k6 Alarm 5k6 Tamper | 5k6/5k6 | DSC |
| xky Alarm xkyTamper | O/C O/C Add Your own resistors. | Where resistor values are not selectable for your alarm system. |
| * Values changed from 4k7/4k7 to 3k3/3k3 to suit demand. Always consult with manufacturer on latest production specification. | ||
| Note: Some alarm systems can not have different wiring types for each zone, please consult the manufacturers manual for guidance.Texecom Premier Elite Panels can have each Zone on a different wiring type. Veritas R8 Plus and Excel, can use resistor values 4k7 and 2k2 but has to be the same values for all 8 Zones.Some Manufacturers may have different resistor values for different panels, older models of the Veritas R8 Plus and Excel used 22k Alarm and 10K Tamper. | ||
Support For the Capture C15 | ||
|---|---|---|
Video/Phone Support |
Wiring Diagrams | |
Texecom Support |
||
It is recomended that only competant people install and maintain Security systems.
Note: Other Texecom and third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
