TexecomVeritas 8 Compact Alarm PanelCFB-0001

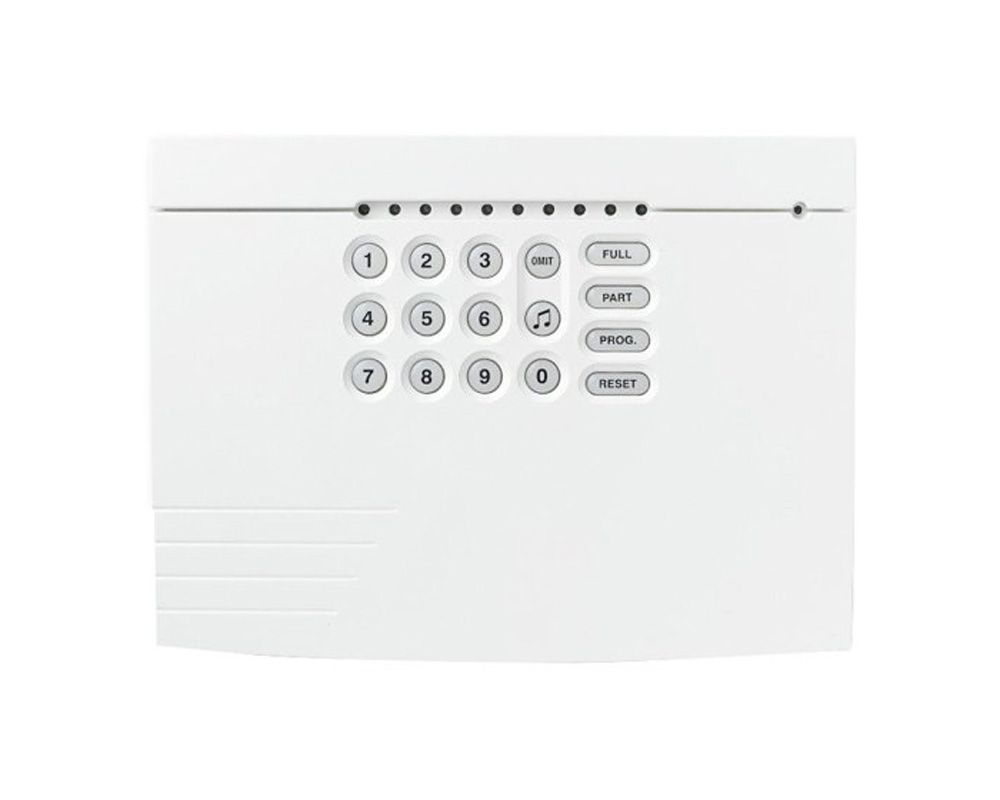

Texecom Veritas 8 Compact Alarm Panel
Panel Dimensions: (H)185 mm x (W)246 mm x (D)55 mm

Features

8 Programable Zones
Seperate Global Tamper Circuit
2 Part Sets plus Full Set
Engineers hold off for Texecom Odyssey Bell Box (subject to wiring of strobe terminal).
Built in LED keypad
Add up to 6 additional Veritas LED Keypads DCA-0001
PCB now has no glass fuses like previous models
Max backup battery size 2.1Ah

Please refer to Texecoms Veritas 8/Veritas 8 Compact/ Veritas R8 Manual for the full specification of the Veritas 8C Intruder Alarm Panel.

Request Quote Quantity

Veritas 8 Compact Max 6 remote keypads can be added

Request Quote Quantity

Veritas LED Keypad Only Connects to Texecom Veritas Panels
Veritas 8 Compact Replacement Buttons Kit Straight membrane SWT022

Request Quote Quantity

'.AEJ0001_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0002_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0003_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0014_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0001_TITLE.'
Double Pole or EOL Wiring with Selectable Built in Resistors.

Request Quote Quantity

'.AKB0001_TITLE.' Double Pole or EOL Wiring With Selectable Resistors
'.AKC0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKD0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKF0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKG0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKW0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKX0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKY0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKB0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKC0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKD0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKF0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKG0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors

Request Quote Quantity

Odyssey 1 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 2 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 3 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 3M White Cover Blue Lens Metal External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 4 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
FCD0045_TITLEB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
FCE0006_TITLEB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 1E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 2E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 3E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 4E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
FCeD0018_TITLEB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
FCE0002_TITLEB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring

Request Quote Quantity

Odyssey XBE External Siren<br>109dB With Back Light Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring, Backlight
Odyssey XB External Siren<br>115dB With Back Light Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring, Back Light
Odyssey XE External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey X External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring

Request Quote Quantity

Odyssey X1 White & Blue Sounder CoverFront Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & Red Sounder CoverFront Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.

Request Quote Quantity

Odyssey X3 White & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Red & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.

Request Quote Quantity

Required to Convert Non Texecom Premier Elite Panels to Ricochet Wireless, device limited.

Request Quote Quantity

'.GHA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0002_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0003_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0002_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0003_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0004_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0005_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.

Request Quote Quantity

'.GDA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDB0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDD0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDF0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDG0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDH0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDA0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDB0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDD0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.

Request Quote Quantity

'.GBW0002TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GBW0001TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GBN0001_TITLE.' Compatible with Premier Elite V2.x, 8XP-W 2.x, 32XP-W 2.x & -W v2.x & above & the Ricochet Expansion Pack above Please Consult Manual for specifics.
'.GBG-0001_TITLE.' Compatible with Premier Elite V2.x, 8XP-W 2.x, 32XP-W 2.x & -W v2.x & above & the Ricochet Expansion Pack above Please Consult Manual for specifics.

Veritas 8/8C/R8 Intruder User Manual

Texecom Veritas 8 / 8 Compact / R8 User Manual

Support For theVeritas 8 Compact Alarm PanelCFB-0001

Video/Phone Support

Wiring Diagrams

Texecom Support

Notes For theVeritas 8 Compact Alarm PanelCFB-0001

Does not support the use of Resistors for Detection Devices.

Does Support Normall Closed Wiring.
Devices Requiring Double Pole Wiring, alarm pair normally closed and global tamper normally closed wired in series with other devices.
Will Wire to most modern bell boxes.

Requires Ricochet Expansion Pack to add wireless capability to this panel
Note: Ricochet Expansion Pack is NOT compatible with SmartKey, DualTechs, wireless Sounders or wireless Keypads.

Consult Installation / Engineers Manuals and Manufacturer for compatibility of a specific product with this system.

It is recomended that only competant people install and maintain Security systems.

Note: Other Texecom and third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
