TexecomVeritas Excel Alarm PanelCFE-0001

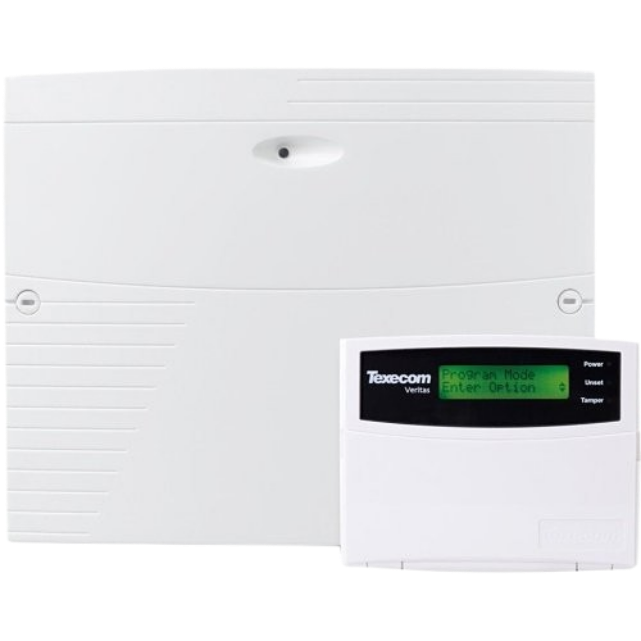

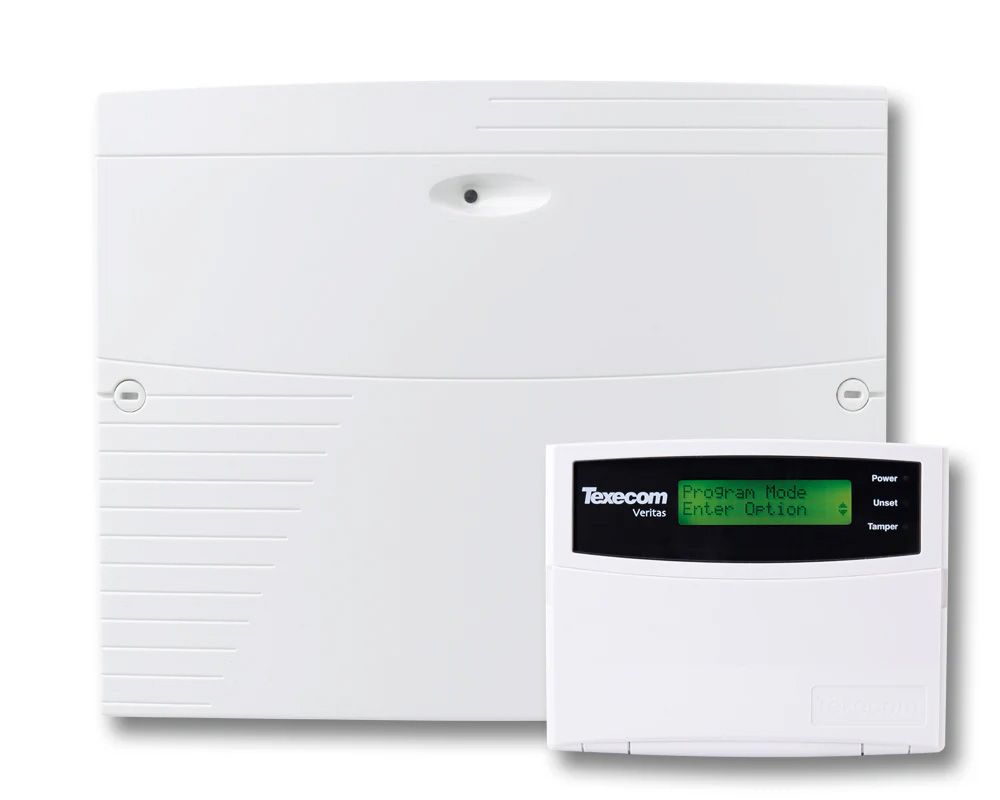

Texecom Veritas Excel Alarm Panel
Panel Dimensions: (H)225 mm x (W)282 mm x (D)80 mm
Keypad Dimensions: (H)146 mm X (W)116 mm X (D)30 mm

Features

8 Programable Zones
Seperate Global Tamper Circuit
2 Part Sets plus Full Set
Individual Zone activations and tampers when using resistors.
(all detection devices connected must use resistors ).
Upload download Panel configurtion with Veritas UDL software and usb com lead.
Compatible with Smart Com PRO using 8 channel communicator Interface.
Engineers hold off for Texecom Odyssey Bell Box (subject to wiring of strobe terminal).
Remote Wired LCD Keypad comes as standard
Add up to 6 Veritas LED Keypads DCA-0001 or LCD Keypads DCB-0001
PCB now has no glass fuses like previous models
Max backup battery size 7Ah

Please refer to Texecoms Veritas R8 Plus / ExcelManuals for the full specification of the Veritas R8 Plus Intruder Alarm Panel

Request Quote Quantity

Veritas Excel Max 6 remote keypads can be added

Request Quote Quantity

Veritas LED Keypad Only Connects to Texecom Veritas Panels
Veritas Excel LCD Keypad Only Connects to Texecom Veritas R8 Plus & Excel Panels
Veritas LED Keypad<br>Replacement Buttons Kit Straight membrane SWT022

Request Quote Quantity

'.AEJ0001_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0002_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0003_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0014_TITLE.' Double Pole or EOL Wiring with Selectable Built in Resistors.
'.AEJ0001_TITLE.'
Double Pole or EOL Wiring with Selectable Built in Resistors.

Request Quote Quantity

'.AKB0001_TITLE.' Double Pole or EOL Wiring With Selectable Resistors
'.AKC0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKD0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKF0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKG0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKW0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKX0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKY0001_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKB0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKC0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKD0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKF0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors
'.AKG0006_TITLE.' Double Pole or EOL Wiring With Built in Selectable Resistors

Request Quote Quantity

Odyssey 1 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 2 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 3 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 3M White Cover Blue Lens Metal External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 4 White Cover Blue Lens External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
FCD0045_TITLEB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
FCE0006_TITLEB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring
Odyssey 1E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 2E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 3E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey 4E White Cover Blue Lens External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
FCeD0018_TITLEB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
FCE0002_TITLEB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring

Request Quote Quantity

Odyssey XBE External Siren<br>109dB With Back Light Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring, Backlight
Odyssey XB External Siren<br>115dB With Back Light Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring, Back Light
Odyssey XE External Siren 109dB Grade 2 Bell Box, 109dB, Single Piezo, 5 Cores Coventional Wiring
Odyssey X External Siren 115dB Grade 3 Bell Box, 115dB, Twin Piezo, Fault Relay, 5 Cores Coventional Wiring

Request Quote Quantity

Odyssey X1 White & Blue Sounder CoverFront Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & Red Sounder CoverFront Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 White & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X1 Black & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.

Request Quote Quantity

Odyssey X3 White & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Blue Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & White Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Black & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 White & Green Sounder Cover Front Cover for Texecom Odyssey X Range Only.
Odyssey X3 Red & Red Sounder Cover Front Cover for Texecom Odyssey X Range Only.

Request Quote Quantity

Required to Convert Non Texecom Premier Elite Panels to Ricochet Wireless, device limited.

Request Quote Quantity

'.GHA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0002_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0003_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHA0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0002_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0003_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GHC0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0004_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0005_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GJA0014_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.

Request Quote Quantity

'.GDA0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDB0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDD0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDF0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDG0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDH0001_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDA0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDB0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GDD0006_TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.

Request Quote Quantity

'.GBW0002TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GBW0001TITLE.' Compatible with Premier, Premier Elite 8XP-W, 32XP-W all versions an -W panels v2.x & above & the Ricochet Expansion Pack.
'.GBN0001_TITLE.' Compatible with Premier Elite V2.x, 8XP-W 2.x, 32XP-W 2.x & -W v2.x & above & the Ricochet Expansion Pack above Please Consult Manual for specifics.
'.GBG-0001_TITLE.' Compatible with Premier Elite V2.x, 8XP-W 2.x, 32XP-W 2.x & -W v2.x & above & the Ricochet Expansion Pack above Please Consult Manual for specifics.

Request Quote Quantity

Suitable for Texecom Connect when Plugged in to Texecom Premier Elite V4.x minimum & Version 5.x Ricochet V3.0.6 & above for Texecom cloud features.

Outputs can be used on Texecom Veritas R8plus & Excel Panels & non Texecom Panels for ARC monitored systems No Texecom Connect App.
Suitable for Texecom Connect when Plugged in to Texecom Premier Elite V4.x minimum & Version 5.x Ricochet V3.0.6 & above for Texecom cloud features.

Outputs can be used on Texecom Veritas R8plus & Excel Panels & non Texecom Panels for ARC monitored systems No Texecom Connect App.
Suitable for Texecom Connect when Plugged in to Texecom Premier Elite V4.x minimum & Version 5.x Ricochet V3.0.6 & above for Texecom cloud features.

Outputs can be used on Texecom Veritas R8plus & Excel Panels & non Texecom Panels for ARC monitored systems No Texecom Connect App.

Veritas R8 Plus/ Excel Intruder User Manual

Texecom Veritas R8 Plus User Manual

Texecom Veritas Excel Master User Manual

Support For theVeritas Excel Alarm PanelCFE-0001

Video/Phone Support

Wiring Diagrams

Texecom Support

Notes For theVeritas Excel Alarm PanelCFE-0001

Supports the use of resistors for Detection Devices.

Does Support Normally Closed Wiring.
There are no official Texecom replacement buttons for LCD keypads.
Keypad addressing is different for LED and LCD keypads, refer to Keypad Manual that devices are addressed correctly and Panel Manual to check which Keypad addresses are connected.
Devices Requiring Double Pole Wiring, alarm pair normally closed and global tamper normally closed wired in series with other devices.
Will Wire to most modern bell boxes.

Requires Ricochet Expansion Pack to add wireless capability to this panel
Note: Ricochet Expansion Pack is NOT compatible with SmartKey, DualTechs, wireless Sounders or wireless Keypads.

The SmartCom Pro, allows ARC monitoring of Veritas R8 Plus & Excel Panels.
The SmartCom Pro does not give access to the Texecom Connect App.

Consult Installation / Engineers Manuals and Manufacturer for compatibility of a specific product with this system.

It is recomended that only competant people install and maintain Security systems.

Note: Other Texecom and third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
